• FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. chaintensioners
• FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset

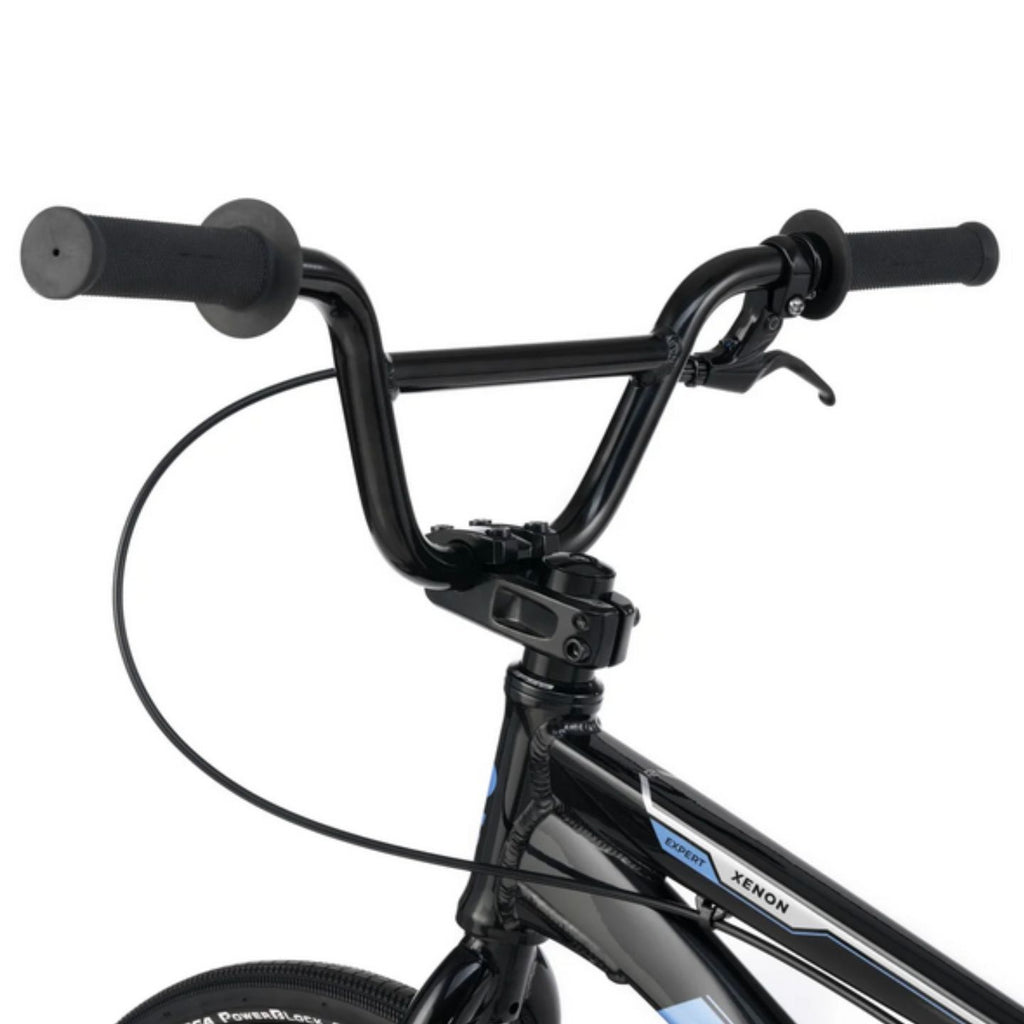

• HANDLEBAR: 6061-T6 alloy bar
• GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 132mm length
• STEM: RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy
• HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"
• BRAKE LEVER: PROMAX "XL-378" brake lever, rear
• BRAKE: PROMAX "MV-85" brake, rear

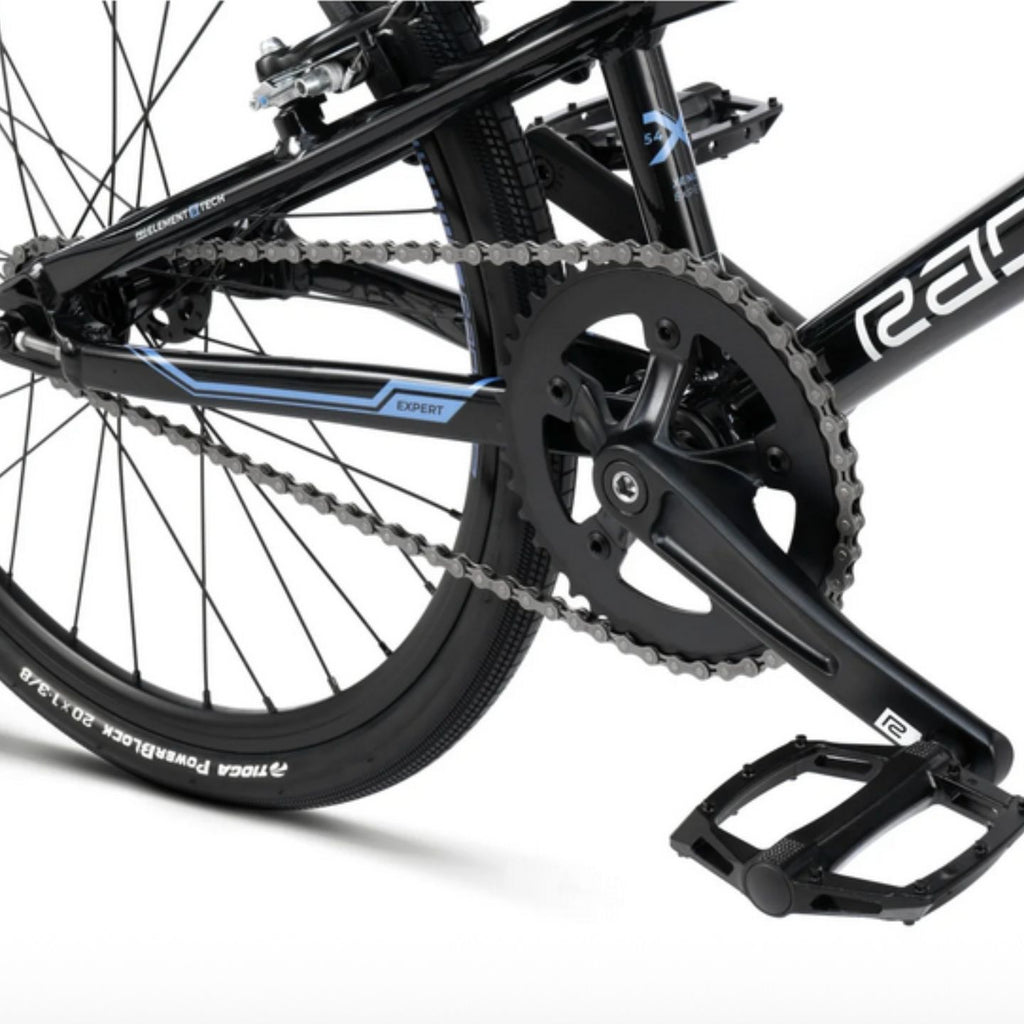

• CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 165mm length
• BB: RADIO RACELINE BB set, BSA square taper, sealed
• PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
• CHAIN: KMC "Z6" chain, 1/2" x 3/32"
• SPROCKET: RADIO RACELINE sprocket, 42T, alloy
• DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

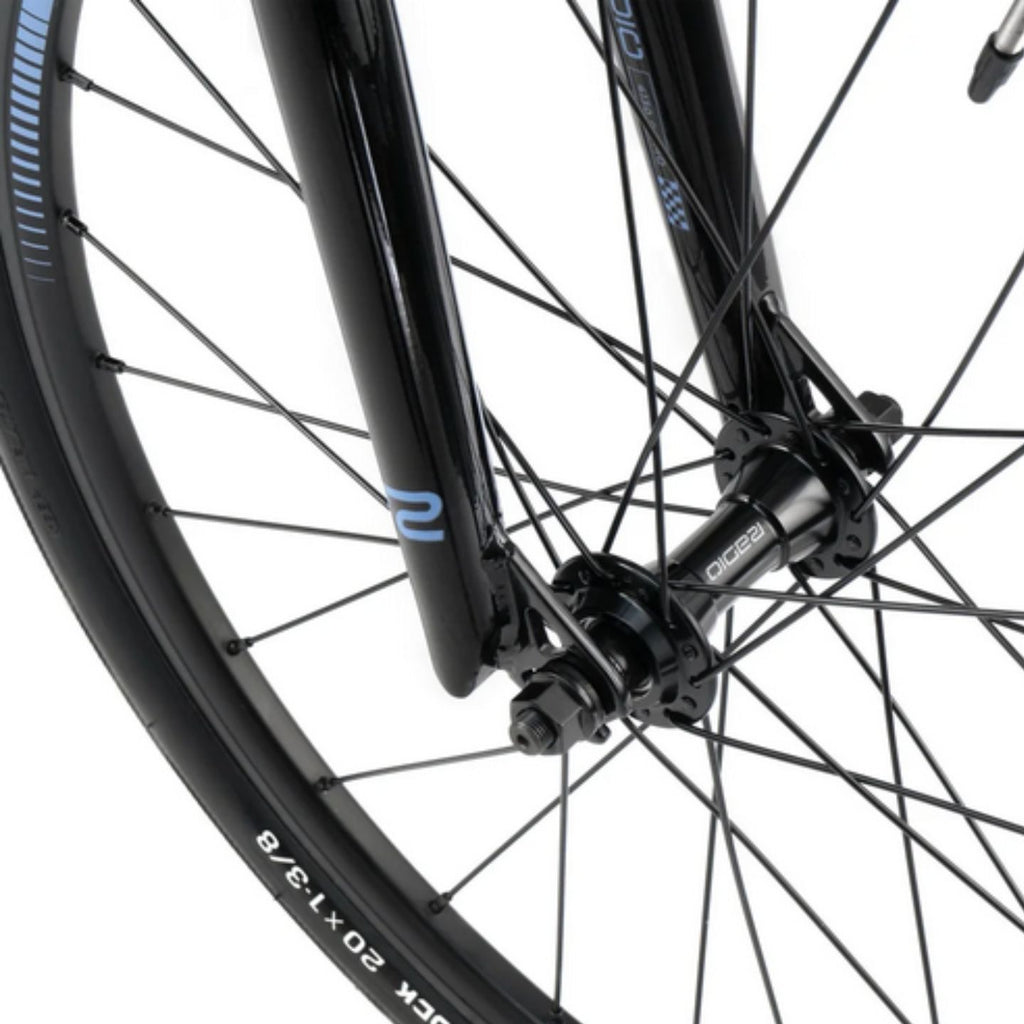

• FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
• REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
• FRONT RIM: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
• REAR RIM: RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
• SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
• SEAT POST: RADIO RACELINE seat post, 22.2mm, alloy
• SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
• TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

Weight: 8.19kg / 18.06lbs

Frame Geometry:

Handlebar Geometry:
