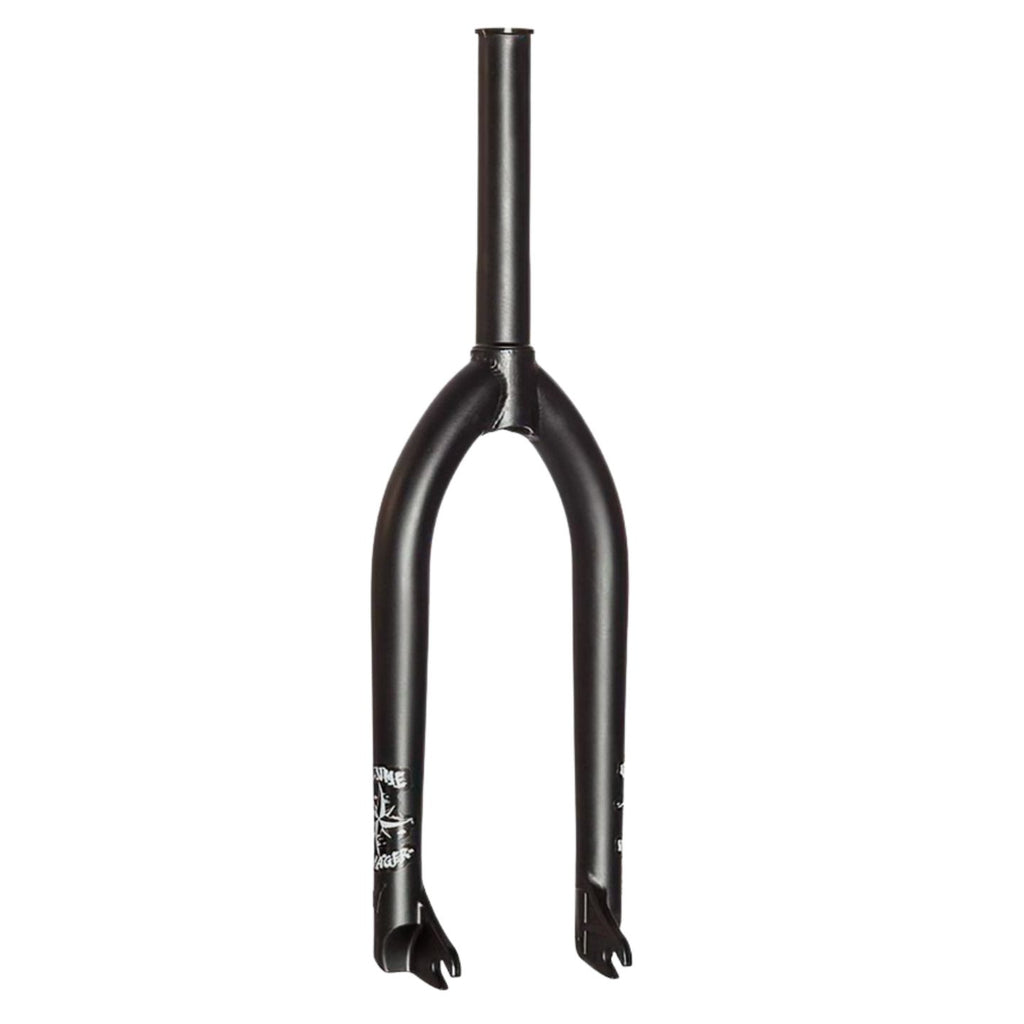

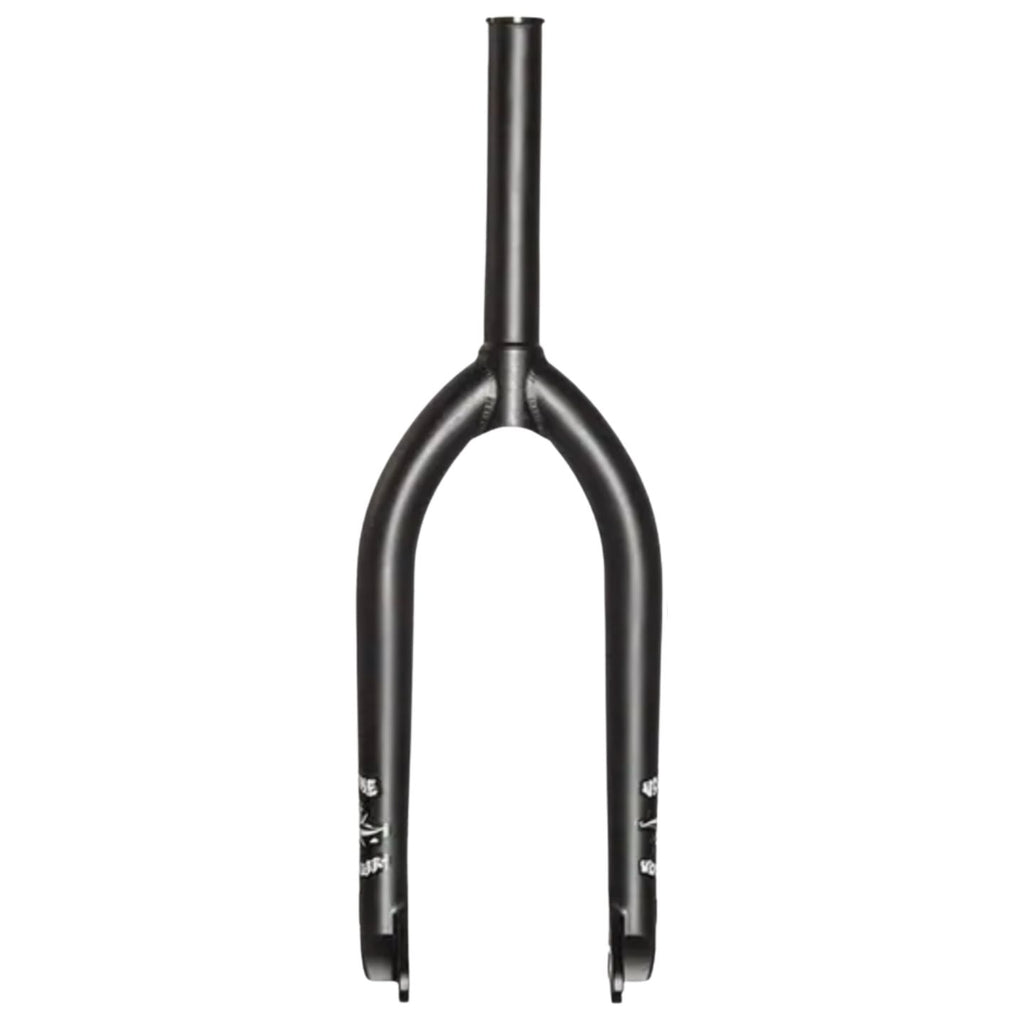

The new Voyager fork is made from 100% heat treated CRMO tubing and investment casted dropouts.

Featuring a 1-piece internally and externally butted steerer tube and ultra tapered legs.

Wider blades to fit bigger tyres.

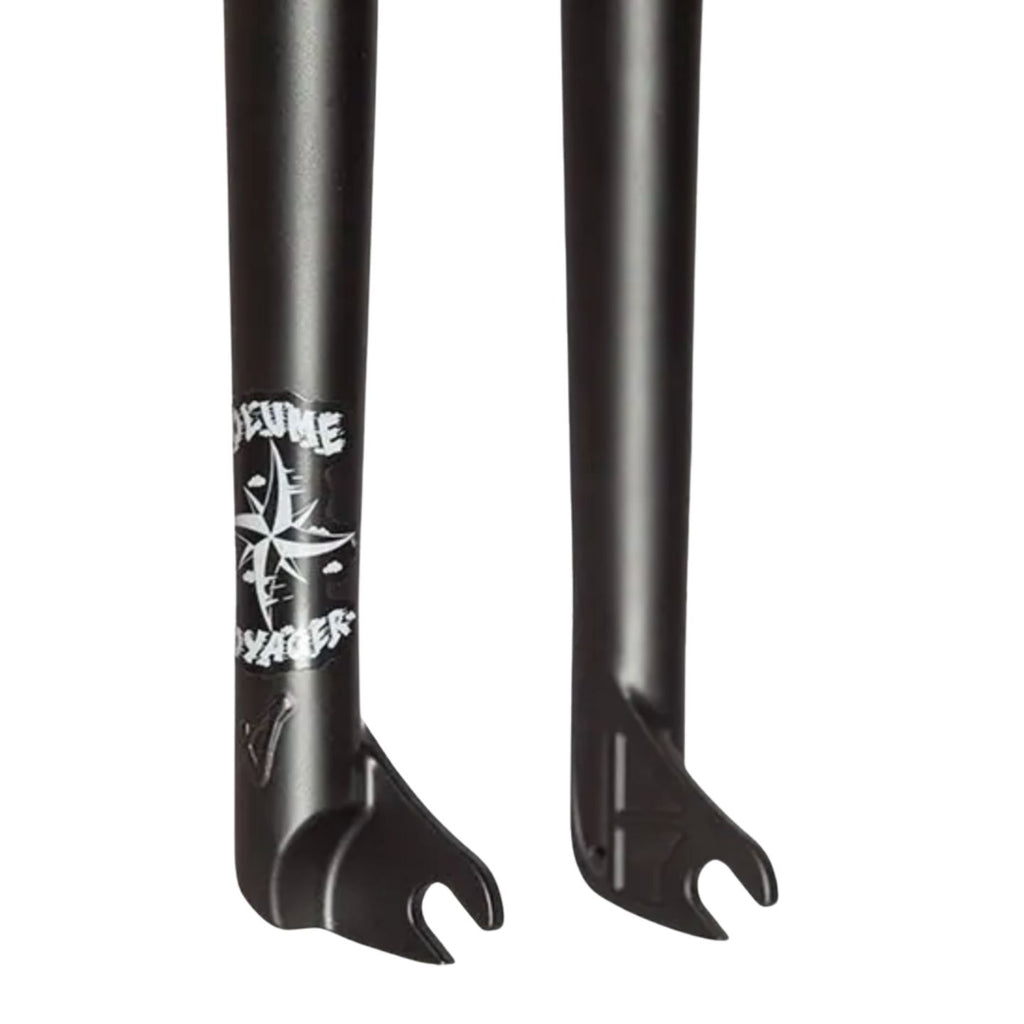

Casted dropouts are fully notched and custom designed for strength and durability while grinding.

• One Piece Steerer w/Tapered Legs
• Steerer Tube: 1-1/8″ Threadless
• Steerer Tube Length: 163.0 mm
• Fork Rake/ Offset: 28.0 mm
• Axle to Crown Length: 315 mm
• Crown Race: Built-In for 45°X45° bearings
• Dropouts: Investment Casted CRMO 6.0 mm
• Material: 4130 Heat-Treated CRMO
• Top Cap: M25

Specifications

• Material4130 Heat-Treated CRMO
• Axle to Crown Measurement315 mm
• Steerer1-1/8
• Crown raceBuilt-In for 45°X45° bearings
• Rake28.0 mm
• DropoutsInvestment Casted CRMO 6.0 mm
• 983G
