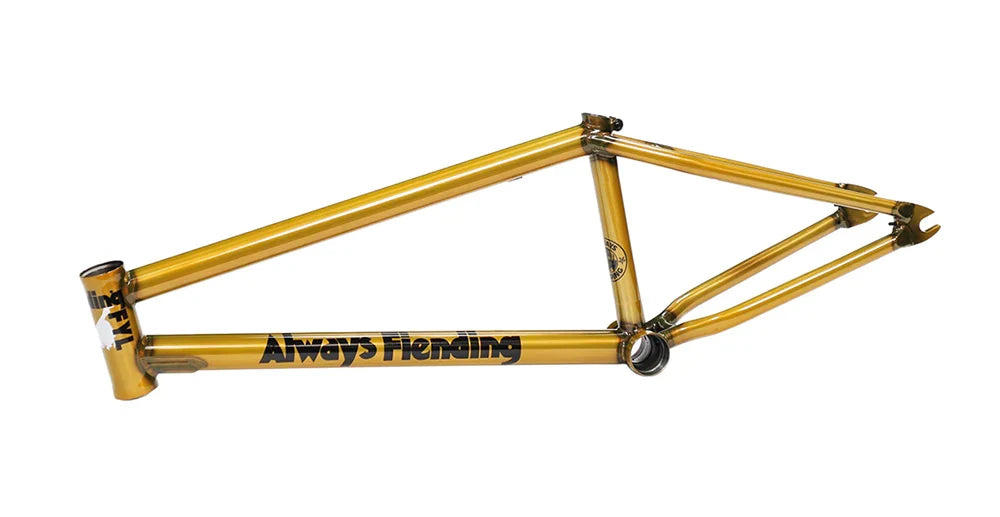

Fiend Reynolds V4 Frame - Trans Gold

Designed by Garrett Reynolds.  Constructed from heat-treated 4130 chromoly with an internal gusseted top tube and an external gusset on the down tube, double-butted top and down tubes, seat stay flush mounted brake lugs, a heat-treated Mid BB shell and 5" head tube(tapped for detangler tabs), externally butted seat tube with integrated post clamp, updated chain stay shape and updated 8mm thick investment cast dropouts with integrated chain tensioners. *Brake hardware sold separately.

*Due to the nature of semi-transparent paint finishes, the character of the raw tubing
will be visible and may contain vein-like abnormalities making each frame unique.

Geometry:
20.5″, 20.75″ & 21″ top tube lengths
HT 75.5* (5" tall)
ST 71*
CS 12.75″
9″ seat tube height (bottom bracket to top tube, center to center)
BB height: 11.625″
Weight: 5lbs. @ 20.75″
