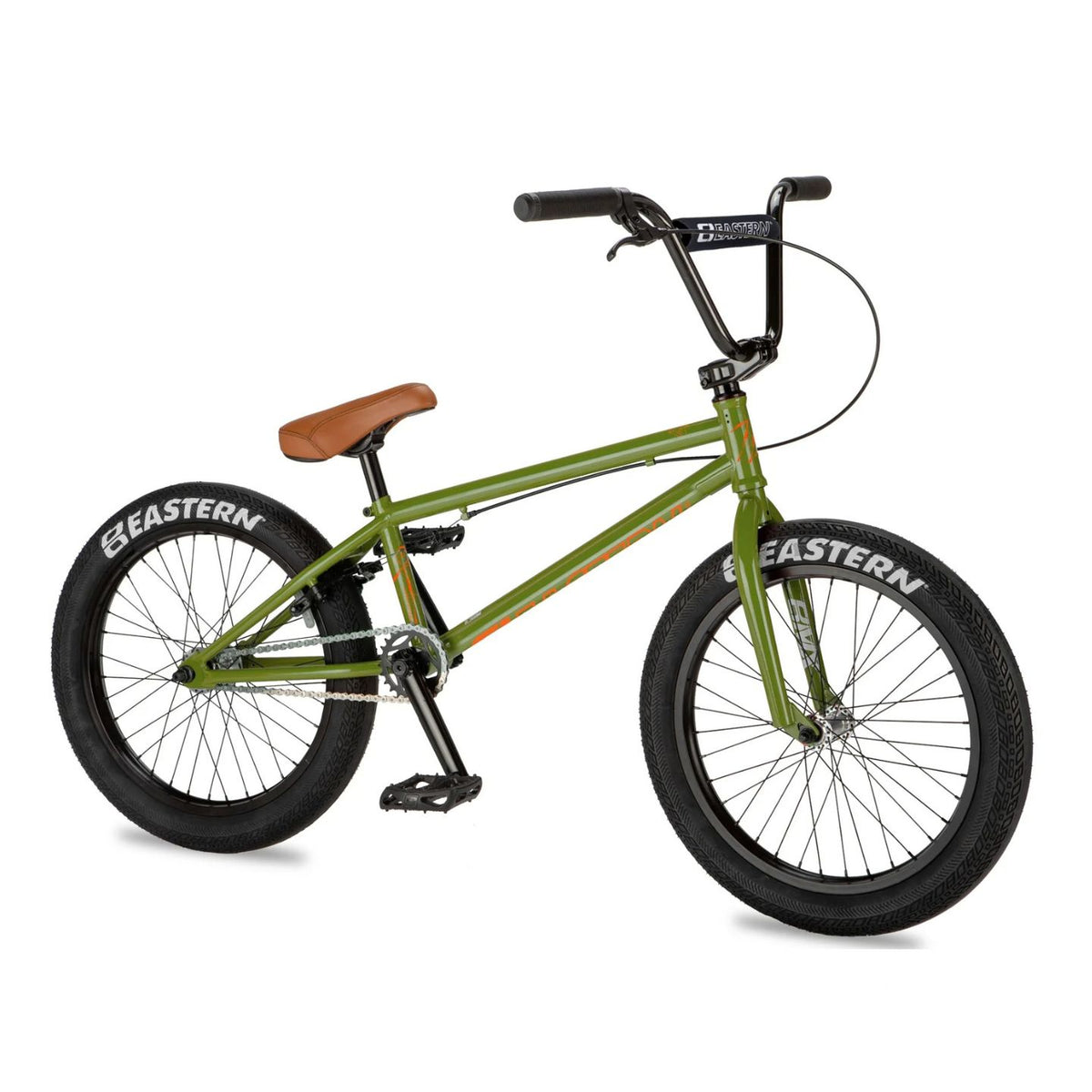

The Eastern Traildigger is back with a newly upgraded full chromo frame and our Facet pedals! Designed for beginners looking to upgrade from a steel frame. This awesome dirt jumper features sealed bearings, integrated headset, sealed front and rear hubs, a 3-piece chromoly cranks, Eastern grips and double-wall rims.
25.5 Lbs
Specifications
Drivetrain:
- Bottom Bracket : Sealed Bearing Mid
- Chain : KMC Z510 1/2 x 1/8
- Chainwheel : Eastern Phorcys, Cold Hard Steel, 25T
- Crank : 3-Piece, Tubular Heat-Treated Chromoly, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Square Tapered Arm
- Pedals : New Eastern Facet Plastic Pedal with 9/16" Axle
- Rear Cogs : Eastern Phorcys, Cold Hard Steel, 25T
Frameset:
- Fork : Traildigger 20"_x009d_, Chromoly Steerer with Hi-Tensile Steel Legs Fork Rake: 28mm
- Frame : Traildigger 20", Full Chromoly Top Tube Size: 20.75" BB: Mid Headtube: Integrated Chainstay Length: 13.38" Clamp: Integrated with Frame
- Headset : Integrated 45°X45° Sealed Cartridge Bearing
Components:
- Bars : Hi-Ten 8.75" Upsweep/Backsweep 12°/1°
- Grips : Eastern Riblet Grips
- Saddle : Medium Width Pivotal Seat
- Seatpost : Pivotal 200mm
- Stem : Forged Alloy Top Load Stem
Wheels:
- Freewheel : 9 Tooth Driver with Hub
- Front Hub : Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
- Front Rim : Alloy, Double Wall, Drilled for 36 Spokes
- Front Tire : 2.4" Eastern Squealer OEM Tires
- Rear Hub : 5 Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
- Rear Rim : Alloy, Double Wall, Drilled for 36 Spokes
- Rear Tire : 2.4" Eastern Squealer OEM Tires
- Spokes : 14 Gauge with Brass Nipples
Size Guide: 165cm - 180cm Tall
When purchased online for postal delivery, this bike will arrive to you in a bike box and will require assembly. Assembly will require fitting of the front wheel, handlebars, seat & Seat post, pedals, pumping up the tyres, connecting and setting up the brakes. We recommend getting this done by an experienced bike mechanic. If you do not have access to a local bike shop or bike mechanic we recommend watching you tube instructional videos for safe assembly of this BMX bike.
